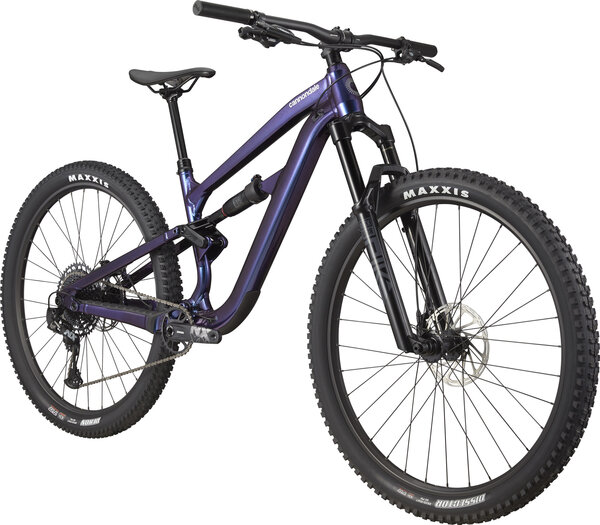

Cannondale Habit 3

Cannondale Habit 3
  • Color: Grey
  • Color: Purple Haze
$3,325.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Order now and pick up in-store for free

Details

Flow Seeker
A trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun!

Where it thrives
Out in the elements

What it's built for
Trail riding fun

Highlights
- SmartForm C1 Alloy Frame / SRAM NX Eagle 12-speed drivetrain
- Rockshox Pike Select 140mm fork / Deluxe Select+ shock
- SRAM G2 R 4-piston hydro discs / TranzX dropper post


Suspension Built for You
A rider's center of gravity drives how the suspension performs, yet most bikes use the exact same layout for all sizes. Proportional Response Suspension alters the design by size for truly net-level prefornace.

Proportional Response
Full size-specific frame geometry, right down to the chainstay lengths. Keep the rider centered between the wheels for incredible traction and handling.

Downtube Protection
Have peace of mind, knowing a rugged rubber guard is protecting your piece.

Geometry Chart:
SizeX-SmallSmallMediumLargeX-Large
Wheel Size 27.5" 29" 29" 29" 29"
Seat Tube Length (cm) 36 38 40 44.5 50
Top Tube Horizontal (cm) 52.7 56.3 59 61.7 65.4
Top Tube Actual (cm) 49.9 53.1 55.4 57.9 61.7
Head Tube Angle 65.5 65.5 65.5 65.5 65.5
Seat Tube Angle Actual 71.5 70.5 71 72 73
Seat Tube Angle Effective 77.5 77.5 77.5 77.5 77.5
Standover (cm) 70.5 73 73.5 75.1 76.2
Head Tube Length (cm) 10 11 12 13 14
Wheelbase (cm) 112.9 117 120 123.4 127.8
Front Center (cm) 69.6 73.8 76.7 79.6 83.5
Chain Stay Length (cm) 43.4 43.4 43.5 44 44.5
Bottom Bracket Drop (cm) 1.6 3.8 3.8 3.8 3.8
Bottom Bracket Height (cm) 34.2 34.1 34.1 34.1 34.1
Fork Rake (cm) 3.7 4.2 4.2 4.2 4.2
Trail (cm) 12.2 12.7 12.7 12.7 12.7
Stack (cm) 57.5 62.3 63.2 64.1 65
Reach (cm) 40.5 43 45.5 48 51.5
Sizes:
SizeRider Height
X-Small 5'0"-5'2"
Small 5'1"-5'5"
Medium 5'4"-5'9"
Large 5'8"-6'0"
X-Large 5'11"-6'5"

Specs

Frame Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Fork Fox 34 Rhythm, 140mm, 15x110mm thru-axle, tapered steered, 42mm offset
Rear Shock Fox DPS Performance, 2-Pos mode adjust, adjustable rebound
Rims Stan's NoTubes Crest D, 32h, tubeless ready
Hubs (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Spokes Stainless Steel, 14g
Tires (F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready, (R) Maxis Rekon, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready
Bottom Bracket SRAM DUB BSA MTB73 Wide
Crankset SRAM NX Eagle DUB, 30T, 55mm chainline
Shifters SRAM NX Eagle, 12-speed
Rear Derailleur SRAM NX Eagle
Cassette/Freewheel SRAM NX Eagle, 10-50, 12-speed
Chain SRAM SX Eagle, 12-speed
Brakes SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors
Handlebars Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Tape/Grips Cannondale TrailShroom
Stem Cannondale 3, 6061 Alloy, 31.8, 0°
Headset Integrated Sealed Bearing, Tapered
Seatpost TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150 (M-XL)
Saddle Cannondale Scoop Shallow Sport, steel rails

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Grey / X-Small / 27.5-inch 884603920176 C23301U10XS 27515193564S
Grey / Small / 29-inch 884603920183 C23301U10SM 29U14411308M
Grey / Medium / 29-inch 884603920190 C23301U10MD 29U14558715D
Grey / Large / 29-inch 884603920206 C23301U10LG 29U14616779G
Grey / X-Large / 29-inch 884603920213 C23301U10XL 29U14594841L
Purple Haze / Small / 29-inch 884603920237 C23301U20SM 29U14984507M
Purple Haze / Medium / 29-inch 884603920244 C23301U20MD 29U1426061D
Purple Haze / Large / 29-inch 884603920251 C23301U20LG 29U14987771G
Purple Haze / X-Large / 29-inch 884603920268 C23301U20XL 29U1431446L
